Vibrations make large landslide flow like fluid

04-04-2016

1994

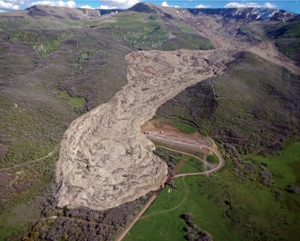

A 1994 "long-runout" landslide in Mesa County, Colorado. (John White/Colorado Geological Survey)
Download Photo

PROVIDENCE, R.I., and WEST LAFAYETTE, Ind. — A new study may finally explain why some landslides travel much greater distances than scientists would normally expect. A team of researchers used a sophisticated computer model to show that vibrations generated by large slides can cause tons of rock to flow like a fluid, enabling the rocks to rumble across vast distances.

The research, by geoscientists at Brown University, Purdue University and the University of Southern California, is described in the Journal of Geophysical Research: Earth Surface.

The "runout" distance of most landslides – the distance debris travels once it reaches flat land – tends to be about twice the vertical distance that the slide falls. So for a slide that breaks loose a half-mile vertically up a slope, it can be expected to run out about a mile. But "long-runout" landslides, also known as sturzstroms, are known to travel horizontal distances 10 to 20 times farther than they fall, according to Brandon Johnson, an assistant professor of earth, environmental and planetary sciences at Brown and the new study's lead author.

"There are a few examples where these slides have devastated towns, even when they were located at seemingly safe distances from a mountainside," said Johnson, who started working on the project as a student of Jay Melosh, distinguished professor of earth, atmospheric and planetary sciences and physics at Purdue University.

One such example was a slide in 1806 that slammed into the village of Goldau, Switzerland, claiming nearly 500 lives.

"It has been known for more than a century that very large, dry landslides travel in a fluid-like manner, attaining speeds of more than 100 mph, traveling tens to hundreds of kilometers from their sources and even climbing uphill as they overwhelm surprisingly large areas," said Melosh, who was part of the research team. "However, the mechanism by which these very dry piles of rock obtained their fluidity was a mystery."

Scientists developed several initial hypotheses. Perhaps the slides were floating on a cushion of air, or perhaps they ran atop a layer of water or ice, which would lower the friction they encountered. But the fact that these types of landslides also occur on dry, airless bodies like the moon cast doubt on those hypotheses.

In 1979, Melosh proposed a mechanism called "acoustic fluidization" to explain these long runouts. Slides of sufficient size, Melosh proposed, would generate vibrational waves that propagate through the rock debris. Those vibrations reduce the effect of friction acting on the slide, enabling it to travel further than smaller slides, which don't generate as much vibration. The mechanism is similar to the way a car is more likely to slide if it's bouncing down a bumpy road as opposed to rolling along a smooth one.

In 1995, Charles Campbell from the University of Southern California created a computer model that was able to replicate the behavior of long-runout slides using only the dynamic interactions between rocks. No special circumstances like water or air cushions were required. However, due to the limitations of computers at the time, he was unable to determine what mechanism was responsible for the behavior.

"The model showed that there was something about rocks, when you get a lot of them together, that causes them to slide out further than you expect," Johnson said. "But it didn't tell us what was actually happening to give us this lower friction."

For this new study, Johnson was able to resurrect that model, tweak it a bit, and run it on a modern workstation to capture the dynamics in finer detail. The new model showed that, indeed, vibrations do reduce the effective friction acting on the slide.

The amount of friction acting on a slide depends in part on gravity pulling it downward. The same gravitational force that accelerates the slide as it moves downslope tends to slow it down when it reaches flat land. But the model showed that vibrational waves counteract the gravitational force for brief moments. The rocks tend to slide more when the vibration reduces the friction effect of the gravitational force. Because the vibrational waves affect different rocks in the slide at different times, the entire slide tends to move more like a fluid.

Those results of the new model are consistent with the acoustic fluidization idea that Melosh had proposed nearly 40 years ago, before computer power was adequate to confirm it.

"Campbell and I had a long-standing friendly rivalry, and he did not believe my proposed acoustic fluidization mechanism could possibly explain his findings in the simulations," Melosh said. "As a result of Brandon's careful analysis of the interactions of the rock fragments in the simulations, we’ve now put to rest the debate, and it was a lot of fun for the three of us to work together."

Ultimately, the researchers hope this work might be a step toward better predicting these types of potentially devastating landslides.

"I would suggest that understanding why these landslides run out so far is really is a first step to understanding when and where they might occur in the future," Johnson said. "Our work suggests that all you need is enough volume to get these long-runouts. This leads to the somewhat unsatisfying conclusion that these slides can happen nearly anywhere."

The results may also help scientists understand other types of events. For example, acoustic fluidization might play a role in slippage along fault lines, which contributes to large earthquakes.

"This emergent phenomenon, arising from the simple interactions of individual particles, is likely at play whenever large movements of rock occur," Johnson said.

The research was supported in part by a grant from NASA, which supported Johnson's graduate work.

Writer: Kevin Stacey, Science News Officer at Brown University, 401-863-3766, kevin_stacey@brown.edu

Contributing Writer: Elizabeth K. Gardner, Purdue University News Service, 765-494-2081, ekgardner@purdue.edu

Sources: Jay Melosh, 765-494-3290, jmelosh@purdue.edu

Brandon Johnson, 401-863-3357, Brandon_johnson@brown.edu

Note to Journalists: This release is being jointly issued with Brown University. The Brown release can be seen at https://news.brown.edu/articles/2016/03/landslides

Additional information may also be found at


ABSTRACT

The reduction of friction in long runout landslides as an emergent phenomenon


Brandon C. Johnson, Charles S. Campbell, H. Jay Melosh

Campbell et al. [1995] modeled long runout landslides as granular flow using a soft-particle
code. Their model essentially simulates landslides from first principles, and although no fluid or
obvious mechanism for reduction of friction is included, the model successfully reproduced
many field observations of landslides (eg. the preservation of source stratigraphy in the final
slide mass and a decreasing effective friction with increasing slide volume). We extend the work
of Campbell et al. [1995] with a focus on the mechanism that reduces friction in these slides. We
find sliding preferentially occurs when the overburden is relieved by pressure variations in the
slide. Further analysis shows that our results are very similar to the predictions of the acoustic
fluidization hypothesis. Moreover, we determine that for long runout landslides the wavelength
of vibrations associated with acoustic fluidization is determined by the size of the rock fragments
 in the slide.
